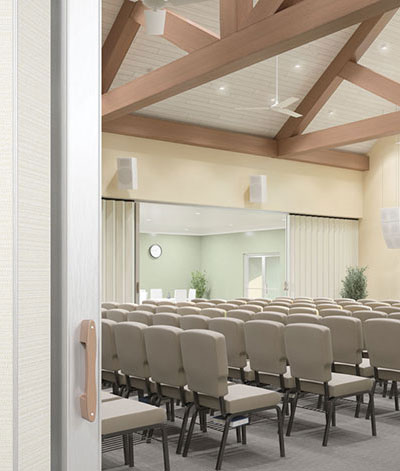

If reducing noise is as important as adding good looks to a space, and economy's a factor too, here's the door most people turn to. Woodfold's Series 2100 single-wall acoustic partitions are ideally suited to spaces where, in addition to closing off part of a room, some degree of sound reduction* is desired. In restaurants, churches, offices, assisted living facilities, almost anywhere, this durable accordion door serves to reconfigure a space at a moment's notice, minimize distracting noise, and also, thanks to full-perimeter seal system, lessen heat loss and air exchange between rooms.

Product Specifications

• Panels: 4-1/4” wide by 1/4” thick; available in Vinyl-Lam and hardwood veneer faces front and back
• Panel Connectors: Flexible vinyl, color-coordinated to panel selection
• Track: 2" x 1-1/8" aluminum, dark bronze or clear finish
• Sound Seal: Flexible vinyl sweep strips mounted top and bottom, with wood molding mounted on both sides of the track forming a 4-7/8" wide sweep surface
• Wheels: Nylon wheels on steel axle with ball bearings supplied as standard
• Lead Post: 3/4” x 2-3/4” aluminum, color-coordinated to panel connectors
• Jamb Molding: 1-5/8" wide by 1" deep aluminum
• Latch: Deadlatch with thumbturn on two sides; keylocks or magnetic catch options available
• Handle: Molded PVC with finger access
• Width: Custom crafted to any width
• Height: Vinyl-Lam up to 10'1"; Hardwoods up to 10'1"
• Stacking Space: 1-1/4” per foot, plus 2-3/4” for lead post

* Field Sound Transmission Class: The Series 2100 door has a field sound transmission class rating of (FSTC) 21. Field tests were performed by Bruck, Richards & Chaudiere, Inc. of Seattle, Washington following the procedures specified in ASTM designation E 336-77.

Hardwood Finishes

Woodfold’s hardwoods represent the most popular natural hardwood species used today. We insist on select grade veneers laminated to an engineered core to ensure excellent dimensional stability. Clear finish is standard, however custom stain finish service is always available. We simply ask that you supply physical color samples for matching.

How To Measure Your Door

Width of Door - Measure the width at the bottom, halfway up and at the top of the door and use the widest dimension you have. NOTE:  IF THE WIDEST DIMENSION IS AT THE BOTTOM OR CENTER YOU MAY HAVE TO TRIM THE SUSPENSION TRACK TO FIT YOUR OPENING AT THE TOP OF THE DOOR AS TRACK LENGTHS ARE MADE TO THE ORDERING WIDTH. This can be done with a hacksaw.

Height of Door - Measure from the top of the finished floor to the point where you are going to attach the track. Measure at 3 different points across the width of the opening and use the tightest dimension you have. Note: If this dimension differs more than 1/2" across the opening call to discuss how to arrive at an acceptable dimension.

All item(s) are custom made to order, it takes 24-48 hours for order processing, manufacturing time is 10 working days (2 weeks including weekends), lead times are subject to change without notice. Please allow 7-10 days for item(s) to arrive once shipped, we will advise tracking numbers as soon as the item(s) leave the manufacturing facility. This results in approximately 3 1/2 to 4 weeks until you receive your order. If items are custom stained or painted extended lead times are required, usually an additional 2 weeks after approval of submitted samples.

Free Shipping in the Continental United States. All over weight or large accordion doors are shipped via common carrier and are TAILGATE DELIVERY. This means that that the trucker will arrive in a large over the road truck and bring the crate to the tail end of his truck, it is your responsibility to remove the item from his truck.

Custom made products such as accordion doors, elevator doors, roll-up doors and shutters are custom-made to size and manufactured to your specifications. No refunds or exchanges are possible. Orders placed with standard lead-times allow 3 business days for changes to be made by contacting the manufacturer.

Orders that require custom material, logos or paints/stains cannot be cancelled or changed after ordered.

Rush orders cannot be changed or cancelled after the next business day. Once your acknowledgement is received with a ship date there are no returns.
