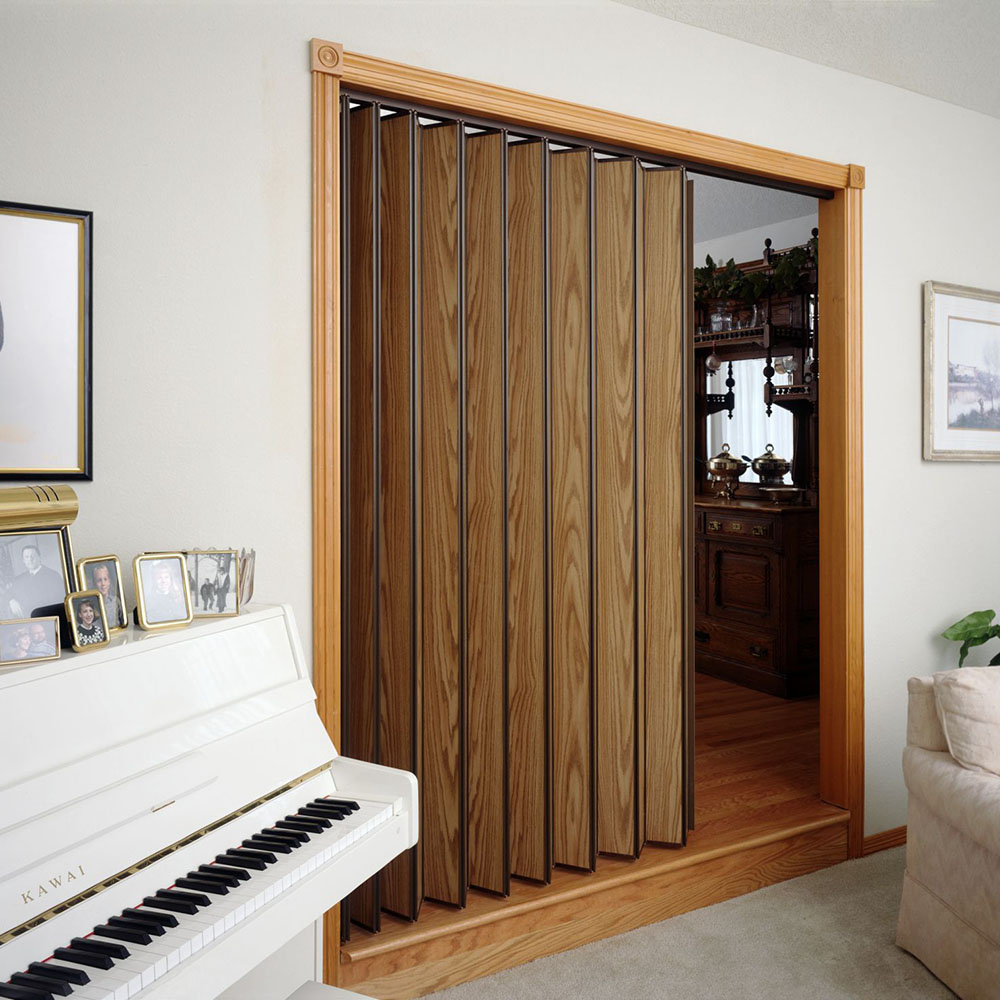

Woodfold's Series 220 room divider door is the ideal choice when you're looking for flexibility of use, and occasional privacy. Finished on both sides and featuring hardware almost identical to our heaviest-duty system, this Series serves as a divider and helps conserve heat in settings ranging from family recreation areas and galley kitchens to conference rooms and hotel banquet halls - in any space where the door is viewed from both sides. The view will, of course, be appreciated - Series 220 doors are crafted of glowing hardwood or striking Vinyl-Lam finishes. Result: a divider door as handsome as it is hardworking.
Product Specifications
- Panels: 4-1/4” wide by 1/4” thick; available in Vinyl-Lam finishes faces front and back
- Panel Connectors: Flexible vinyl, color-coordinated to panel selection
- Track: 1-1/8" x 1" aluminum, dark bronze or clear (color defaults based panel finish selected)
- Wheels: Nylon wheels on Lexan axle
- Handle: Full-length sweptwing handle attached into first panel and color-coordinated to connectors.
- Catch: Magnet with strike plate
- Width: Up to 8'0"
- Height: Up to 8'1"
- Stacking Space: 1-1/4” per foot, plus 7/8" for sweptwing handle
- Note: Series 220 functions as a single door only (no pairs), without keylock options * Woodfold's Series 220, 240, 440 and 540 have been tested for ADA compliance for opening load force per ADA/BOMA SEC 4.1311. Tests were conducted by MEI Charlton, Inc., Portland, OR. Certain ADA applications may call for specific handle location placement which should be specified when door is ordered.
Vinyl Laminate Finishes
Our solid color, multi-textured vinyls are selected to complement the most popular current interior colorations. Woodfold’s Vinyl-Lam finishes are laminated to an engineered core for excellent dimensional stability.
NOTE: Colors may not look exactly as displayed in your browser.
How To Measure Your Door
Width of Door - Measure the width at the bottom, halfway up and at the top of the door and use the widest dimension you have. NOTE: IF THE WIDEST DIMENSION IS AT THE BOTTOM OR CENTER YOU MAY HAVE TO TRIM THE SUSPENSION TRACK TO FIT YOUR OPENING AT THE TOP OF THE DOOR AS TRACK LENGTHS ARE MADE TO THE ORDERING WIDTH. This can be done with a hacksaw.
Height of Door - Measure from the top of the finished floor to the point where you are going to attach the track. Measure at 3 different points across the width of the opening and use the tightest dimension you have. Note: If this dimension differs more than 1/2" across the opening call to discuss how to arrive at an acceptable dimension.
All item(s) are custom made to order, it takes 24-48 hours for order processing, manufacturing time is 10 working days (2 weeks including weekends), lead times are subject to change without notice. Please allow 7-10 days for item(s) to arrive once shipped, we will advise tracking numbers as soon as the item(s) leave the manufacturing facility. This results in approximately 3 1/2 to 4 weeks until you receive your order. If items are custom stained or painted extended lead times are required, usually an additional 2 weeks after approval of submitted samples.
Free Shipping in the Continental United States. All over weight or large accordion doors are shipped via common carrier and are TAILGATE DELIVERY. This means that that the trucker will arrive in a large over the road truck and bring the crate to the tail end of his truck, it is your responsibility to remove the item from his truck.
Custom made products such as accordion doors, elevator doors, roll-up doors and shutters are custom-made to size and manufactured to your specifications. No refunds or exchanges are possible. Orders placed with standard lead-times allow 3 business days for changes to be made by contacting the manufacturer.
Orders that require custom material, logos or paints/stains cannot be cancelled or changed after ordered.
Rush orders cannot be changed or cancelled after the next business day. Once your acknowledgement is received with a ship date there are no returns.
-
Woodfold 220 Series:
Shop Drawings
Accordion Brochure
Color Swatches
Specifications and Manuals
Woodfold Series 220V
